Carburateur

Alle techniek (mechanisch, elektronisch) zaken horen hier thuis.

Re: Vraag carburateur

Berichtdoor EmielW201 » 25 nov 2014, 00:03

Blauw roken duid meestal op olie verbranden en dat zijn vaak de klep seals die versleten zijn.
Gevolg is dat de bougies dan zwart slaan en er een slechte verbranding is.
Check de kleur van de bougies dus eens.
Avatar gebruiker
EmielW201
Diamant Boarder
Diamant Boarder

Berichten: 1232
Geregistreerd: 17 okt 2010, 15:23
Woonplaats: Sint-Oedenrode
Type wagen: 190E 2.0
Bouwjaar: 1986
Automaat: Nee
LPG: Nee


Re: Vraag carburateur

Berichtdoor Theo2 » 25 nov 2014, 16:46

Klopt maar dan zou die met zwarte olie enz op de bougie,s ook niet moeten starten als die koud is.
Klep seals zou ik ook naar kijken maar wilde eerst het ding eens goedlopend krijgen.
Als die warm is tenminste.
Nu met de andere magneet klep strekt die wel beter door dus wel een probleem afgevinkt.
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Vraag carburateur

Berichtdoor jorivanloon » 11 jan 2015, 14:50

Met mijn 190 2.0 carburateur (M102) heb ik het zelfde probleem.
Bij mij zijn de kleprubbers aan vervanging toe, en verbruik ik redelijk veel olie.
Dit gebeurd vooral als de motor warm is, en de olie dus dunner is dan bij een koude motor.
Gevolg hiervan is bij acceleratie (zeker na even stationair draaien) enorme blauwe wolken, niet mooi stationair lopen, en met warme motor zeer slecht starten. Pompen met het gaspedaal helpt niets, er is wel brandstof, maar slechte ontsteking.
Zit nu met de bijzondere situatie dat het ene probleem het andere verhelpt. Mijn thermostaat lekt namelijk vreselijk door, en de motor komt bijna nooit boven de 60 graden uit. Tenzij de auto stil staat en stationair draait = geen rijwind en de viscose koppeling van de fan doet pas iets bij een hogere temperatuur. Motor wordt dus niet te heet, maar gaat wel vreselijk roken.

Lang verhaal kort. De kleprubbers worden zsm vervangen, alsmede de thermostaat.
Denk dat een Benz blok heel wat kan hebben, maar thermische spanningen zijn voor geen enkele motor fijn.
Als vanzelfsprekend heb ik vanaf het ontdekken van dit probleem de auto met wat extra zorg behandeld, en staat ze met deze temperaturen in een winterstalling te wachten.

Kleprubbers kunnen dus ook een plausibele oorzaak zijn...
Gas er op!
Avatar gebruiker
jorivanloon
Expert Boarder
Expert Boarder

Berichten: 141
Geregistreerd: 27 jul 2014, 17:23
Woonplaats: Weert
Roepnaam:
Type wagen: 190D 2.0
Bouwjaar: 1987
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Vraag carburateur

Berichtdoor Theo2 » 17 mei 2016, 12:43

Ja ik ben er weer ben veel wijzer geworden in de tussentijd maar ben er nog niet.

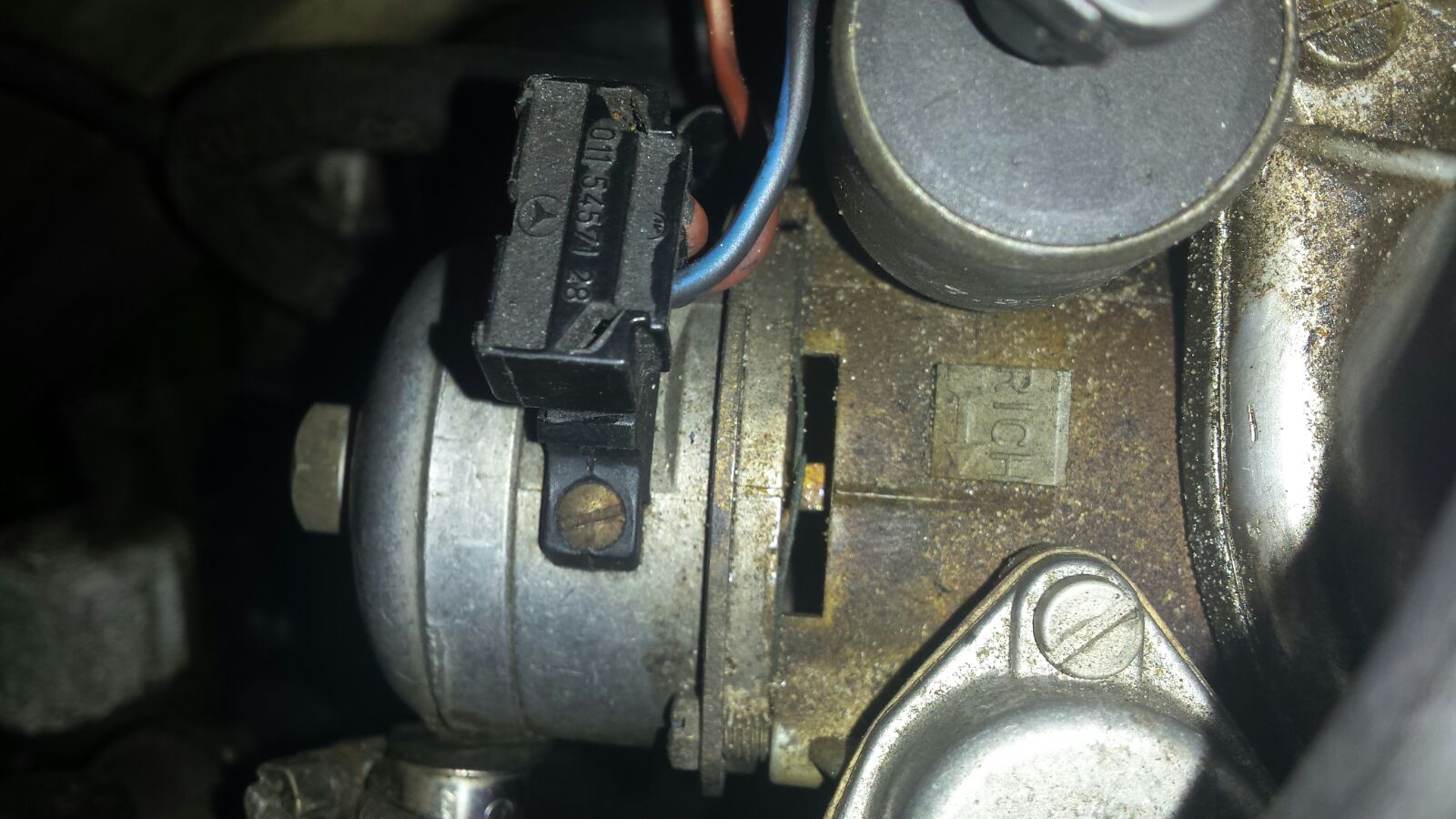

Volgende vraag is dus , motor verzoop de choke bleef hangen nu heb ik deze stekker los gehaald en de motor
blijft nu wel lopen vraag is dus.
Naar welke sensor themperatuur loopt deze stekker heen ? die zou dus moeten registreren dat de motor op themperatuur
is en de choke terug zou moeten gaan naar het midden van het choke huis.
Alvast bedankt weer.
Bijlagen
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Vraag carburateur

Berichtdoor Theo2 » 18 mei 2016, 18:00

Niemand die wat weet ?
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Vraag carburateur

Berichtdoor HansMercedes » 21 mei 2016, 19:43

Weet natuurlijk niet wat er al aan gedaan is maar dat choke huis kan je ook nog afstellen . je kan hem rijker draaien of armer wat wil zeggen dat je de veer spanning kan verhogen of verlagen als je het choke huis wat draait . grt hans
Avatar gebruiker
HansMercedes
Diamant Boarder
Diamant Boarder

Berichten: 4586
Geregistreerd: 03 sep 2009, 21:07
Woonplaats: Beverwijk
Roepnaam:
Type wagen: 190E 2.6
Bouwjaar: 1989
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Vraag carburateur

Berichtdoor RD500SEC » 21 mei 2016, 20:50

de spanning gaat niet via een sensor, maar via een zekering.
met lopende motor en de stekker los genomen meet je op de ene bus in de stekker accuspanning, op de andere massa.
de weerstand van het verwarmingselement in het choke deksel hoort 7 ohm te zijn.
Met vriendelijke groet, Richard
RD500SEC
Technisch adviseur
Technisch adviseur

Berichten: 1341
Geregistreerd: 02 apr 2013, 00:19
Woonplaats: Schagerbrug
Roepnaam:
Type wagen: 190E 2.6
Bouwjaar: 1991
Automaat: Ja
LPG: Nee
Andere wagens / opmerkingen:


Re: Vraag carburateur

Berichtdoor Theo2 » 22 mei 2016, 16:02

Bedankt.
Er zit nu een andere carburateur op maar ook met hetzelfde probleem dus de choke komt niet terug naar het
midden dus hij blijft verzuipen.
Ik heb inmiddels de stekker op het chokehuis los gemaakt en de koelslangen met een pijpje doorverbonden dus
start nu zonder de choke.
Probleem blijft dus met koude start die bijna wilt afslaan en als die wat warmer wordt wel blijft lopen.
Maar begrijp dan nog steeds niet hoe het kan dat als alles zit zoals het hoort de choke blijft hangen ?
Ventiel onder de carburateur werkt goed die kan je testen met gewoon 12 volt erop te zetten dan slaat die uit
zodat je de benzine toevoer stopt als de motor uit staat.
Er zit ook een relais in voor het ventiel onder de carburateur die werkt ook goed.
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Vraag carburateur

Berichtdoor Theo2 » 22 mei 2016, 16:06

Op de stekker van het chokehuis lopen 3 draden.
Bruin, bruin, zwart blauw.
Zwart blauwe draad loopt direct naar de ventielen op de carb en de verdere sensors op het blok maar waar de twee bruine draden heen lopen ? geen idee maar zou het probleem daarin zitten dan ?
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor RD500SEC » 24 mei 2016, 14:36

Dat de motor zonder choke bijna afslaat bij koude motor is wel logisch, toch?

heb je al gemeten aan de draden? zwart- blauw is 12 volt bij lopende motor.
de bruine draden zijn massa.
als je geen 12 volt meet is de zekering wellicht stuk, of maakt geen goed contact.

hieronder nog een schema voor de carburateur:
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
vergaserelektric.pdf
(382.29 KiB) 263 keer gedownload
Met vriendelijke groet, Richard
RD500SEC
Technisch adviseur
Technisch adviseur

Berichten: 1341
Geregistreerd: 02 apr 2013, 00:19
Woonplaats: Schagerbrug
Roepnaam:
Type wagen: 190E 2.6
Bouwjaar: 1991
Automaat: Ja
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor Theo2 » 24 mei 2016, 16:23

Richard bedankt voor het schema.
Klopt met koude motor loopt die slecht maar als die wat warmer wordt loopt die goed dat is logisch.

Zwart blauw staat 12 volt op de choke werkt ook wel maar, als die op themperatuur zou zijn zou dus de choke terug moeten gaan naar het midden en dat doet die dus niet dus verzuipt de motor.
Bi metaal van de choke komt niet terug omdat daar 12 volt op blijft staan.
Ik weet dus niet of er ergens een relais of themperatuur sensor zit die dus de choke verteld dat die warm is.
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor WJ15129 » 24 mei 2016, 16:52

Volgens mij is de bedoeling van de 12 volt op het chokehuis, dat daarmee de chokeklep opengezet wordt en niet om hem te sluiten.
Als je de motor koud wilt starten, en je moet eerst wachten totdat het bimetaal zover is opgewarmd dat de choke dicht gaat, betekend dit dat je langer moet "voorgloeien" dan een diesel voordat je kunt starten ;) .

Ik maak hierbij even de vergelijking met de 4A1 carburateur van mijn 250 (W123). Als alles koud is, is de choke dicht. Een test of de elektrische chokeverwarming werkt is: zet hem op contact (met koude motor) en kijk naar de klep of hij langzaam open gaat. Je moet binnen een minuut zien of er beweging in komt. Bij mij is het verwarmingselement ook eens stuk geweest. Voordat de klep open ging door het warme koelwater duurde toen eindeloos, dan moet je minstens een half uur rijden en dan komt hij nog maximaal half open. Dat duurt gewoon veel te lang en daarvoor zit deze elektrische hulpverwarming erin.
Groeten Willem uit Lelystad
WJ15129
Platinum Boarder
Platinum Boarder

Berichten: 337
Geregistreerd: 29 dec 2011, 17:18
Woonplaats: Lelystad
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Ja
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor RD500SEC » 24 mei 2016, 20:28

Er staat 12 volt op het bimetaal van de choke om het bimetaal te verwarmen, zodra de auto op contact staat, dat klopt.
Een bimetaal wat koud is, doet de choke klep sluiten, een koude motor kun je direkt starten, de chkoke klep staat dan immers dicht.
Het chokehuis wordt tevens door koelvloeistof verwarmd, zodat de chokeklep niet onnodig dicht gaat bij een lauw warme motor. De koelvloeistof ondersteund de elektrische verwarming.

Heb je de weerstand van het choke element al gemeten? Dat zou 7 ohm moeten zijn.

Kijk ik in het elektrisch schema, dan zie ik het contaktslot, zekering 11, stekkerverbinding x26, choke element, massa.
De 12 volt wordt doorgelust naar een pull down ventiel verarming en het vlotterkamer beluchting ventiel, welke ook weer aan massa liggen, direct of indirect.

Je hebt 12 volt gemeten, maar is de massa ook goed?
Heb je de andere ventielen/ verwarming ook al bekeken?
Is de bedrading nog in goede staat, niet ten dele doorgesleten of doorgebroken? Dan meet je wel 12 volt, maar zal het vermogen van de verwarming terug lopen. Ook het choke element kan "lam" zijn na verloop van service tijd.
Met vriendelijke groet, Richard
RD500SEC
Technisch adviseur
Technisch adviseur

Berichten: 1341
Geregistreerd: 02 apr 2013, 00:19
Woonplaats: Schagerbrug
Roepnaam:
Type wagen: 190E 2.6
Bouwjaar: 1991
Automaat: Ja
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor Theo2 » 25 mei 2016, 06:57

Duik er van de week als ik weer wat tijd heb weer in.
Bedankt voor het meedenken en duidelijke uitleg over de werking van het systeem.
Tekening van de choke carburateur enz vond ik ook niet op google enz dus ben er wel blij mee
alhoewel dit niet mijn beste kant is duits.

Wordt vervolgt.
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor Theo2 » 06 jun 2016, 15:37

Ja ben er weer druk druk maar ff tijd gemaakt voor de auto.
Ik heb de verdeler iets verdraait en lijkt nu beter te lopen.
Verder de choke werkt zoals het hoort heb ik nu in de gaten maar nogmaals bedankt voor de div uitleg.
Maar de volgende vraag is ik heb hem nu op de hand zeg maar de verdeler iets verdraait omdat ik er met de stroboscoop lamp niet bij kan komen.
Is dit een speciale kast die ik dan nodig hebt die ik vervolgens in de stekker duwt of ??????
Bdp sensor zit er ook in maar die zit los in de kast kwam ik tegen toen ik de kabel ging volgen dus kan waarschijnlijk met een speciale kast uitlezen.
Alvast weer bedankt.
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor Theo2 » 07 jun 2016, 12:47

Drama auto is het.
Dacht dat het verzetten van de verdeler het probleem had opgelost maar gisteren weer een klein stukje gereden en ja hoor afslaan dus nog steeds geen verbetering.
Wat geprobeert is tot nu toe.

Andere carburateur incl atf olie gevult.
Andere bobine.
Andere ontstekingsmodule.
4 nieuwe bougies.

Zit alleen nog met de benzine pomp mechanisch zou het deze kunnen zijn ?
Ding werkt toch of niet dacht ik zelf.
Auto heeft op LPG gelopen verwijdert en daarna schijnt het probleem te zijn gekomen.
Tenminste toen kocht ik hem.
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor Murena » 07 jun 2016, 15:37

Murena
Fresh Boarder
Fresh Boarder

Berichten: 18
Geregistreerd: 10 jan 2016, 00:47
Type wagen: 190D 2.5
Bouwjaar: 1993
Automaat: Nee
LPG: Nee


Re: Carburateur

Berichtdoor WJ15129 » 07 jun 2016, 15:56

Zit er tussen de tank en de pomp wellicht een verstopping in de leiding? Tankfilter of filtertje in de leiding bijvoorbeeld. Ik begin te denken aan "vapourlock", als er weerstand in de genoemde leiding zit en de motor, lees de benzinepomp, wordt warm dan gaat bij de aanzuigslag van de pomp door onderdruk de benzine verdampen in plaats van dat er vloeistof uit de tank wordt gepompt. En dan pompt hij vervolgens ook geen vloeistof naar de carburateur.

Zomaar een gedachte, maar je weet het nooit.
Groeten Willem uit Lelystad
WJ15129
Platinum Boarder
Platinum Boarder

Berichten: 337
Geregistreerd: 29 dec 2011, 17:18
Woonplaats: Lelystad
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Ja
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor Theo2 » 07 jun 2016, 16:51

Hoi.
Nee principe van de choke werkt wel dit is een elec en koelstof systeem dat werkt zoals het moet werken.

Wat betreft de filter vapor lock is ook een idee.
Wat ik al vermelde ding heeft lange tijd op LPG gelopen dus is het een zoekplaatje maar kan bijna niet anders denk ik ook dan dat er iets in de benzine toevoer zit anders weet ik het nu ook ff niet meer.

Bedankt voor het meedenken.
En bedankt maar weer.
Theo2
Senior Boarder
Senior Boarder

Berichten: 67
Geregistreerd: 17 nov 2014, 20:55
Woonplaats: hillegom
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Carburateur

Berichtdoor Murena » 07 jun 2016, 21:17

Een choke werkt altijd zoals ik omschrijf en is voor de koude start. Dit om het mengsel te verrijken (de motor choken/verstikken) als deze nog koud is. De choke gaat altijd dicht als de motor op temperatuur is.

Dit werkt hetzelfde met auto's met handmatige choke, koude start; dan de choke open, wordt deze warm, dan zet je de choke dicht.

Dit werkt meestal met een klep over de luchtopening maar ook wel regelmatig met een speciale choke sproeier die brandstof toevoegd.

Voor de gene die nog steeds anders denkt, bovenstaande is tevens te vinden in de documentatie van zowel Solex, Dellorto en Weber.
Murena
Fresh Boarder
Fresh Boarder

Berichten: 18
Geregistreerd: 10 jan 2016, 00:47
Type wagen: 190D 2.5
Bouwjaar: 1993
Automaat: Nee
LPG: Nee

VorigeVolgende

Keer terug naar Techniek W201

Wie is er online

Gebruikers op dit forum: Geen geregistreerde gebruikers. en 3 gasten
