Vooraan iets lager : Carrosserie & Exterieur W201

W201Club.nl

Alles over de Mercedes W201

Het is nu 19 maart 2024, 06:08

Vooraan iets lager

Alles omtrent de carrosserie en de buitenkant, zoals bijv. spuiten, roest, plaatwerk, lassen maar ook spiegels, rubbers en chroom, ruitenwissers etc.

Vooraan iets lager

Berichtdoor 8loch » 26 maart 2017, 13:02

Beste forumleden,

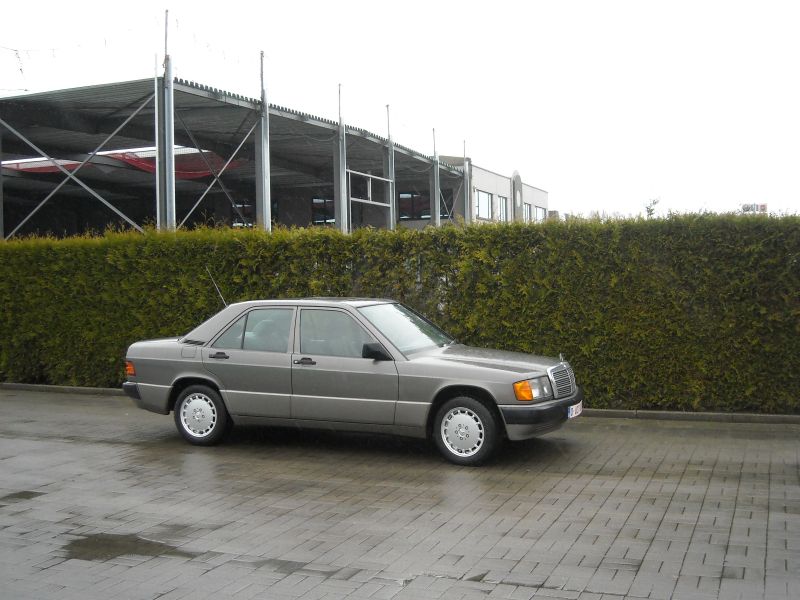

ik zou graag m'n Benz vooraan iets lager willen hebben. Toen ik onlangs bij de bandenboer was voor banden heb ik gezien dat ik vooraan met 1nop en achter met 2nops veerrubber zit op de veren en toch staat ie vooraan hoger dan achter.
Weet niet of ze dat allemaal hebben maar die van mij is een automaat.

Iemand een oplossing ?
Bijlagen
zonneke 007.jpg
zonneke 007.jpg (112.44 KiB) 2137 keer bekeken
8loch
Junior Boarder
Junior Boarder

Berichten: 35
Geregistreerd: 22 jan 2017, 07:52
Type wagen: 190E 1.8
Bouwjaar: 1990
Automaat: Ja
LPG: Nee


Re: Vooraan iets lager

Berichtdoor SetaniLea » 26 maart 2017, 13:13

Vind hem op de foto ook veel te hoog staan met 1 nop. Dit was mijn hoogte met 3 nop en originele veer.
Misschien heb je verzwaarde veren zitten? Als je al reeds 1 nop rubbers hebt, zou je helaas je veren moeten vervangen door sportline of verlagingsveren en of the cheap way, een winding afslijpen. Keuze is aan jouw.
Wel met Mercedes veerspanners te werk gaan. De haakjes van een gewone spanners zijn te gevaarlijk.
Gr Leandro
SetaniLea
Expert Boarder
Expert Boarder

Berichten: 133
Geregistreerd: 19 maart 2015, 23:04
Woonplaats: Limburg België
Type wagen: 190D 2.5
Bouwjaar: 1986
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Vooraan iets lager

Berichtdoor 8loch » 26 maart 2017, 14:02

Bedankt SetaniLea voor je reactie.
Verzwaarde veren !? Waarom zouden die er dan onderzitten, denk je ? Ik heb geen gastank, geen diesel ...
Achterkant van de auto vind ik goed, ik zou alleen vooraan iets lager willen, en met iets bedoel ik 1 à 2cm, meer hoeft niet. Verlaagde veren voor een W201 zijn meestal 40mm of 60mm en dat is teveel.
Sportline-veren verlagen 20mm maar moet je hier dan niet meer voor aanpassen dan enkel de verenwissel ?
8loch
Junior Boarder
Junior Boarder

Berichten: 35
Geregistreerd: 22 jan 2017, 07:52
Type wagen: 190E 1.8
Bouwjaar: 1990
Automaat: Ja
LPG: Nee


Re: Vooraan iets lager

Berichtdoor EmielW201 » 26 maart 2017, 17:48

Voor een W201 1.8 modellpflege is de voorzijde op deze foto niet de originele hoogte. Waarschijnlijk heeft een van de vorige eigenaren de voor veren vervangen door aftermarket zwaardere veren of originele veren voor b.v. een 2.6 model met airco. Om de juiste rijhoogte aan de voorzijde de krijgen zou je dus de voorste veren moeten vervangen door de juiste veren voor jouw model. Gebruikte veren kan ook maar dan moet je er wel zeker van zijn dat ze voor dit model zijn en dus niet van een 2.6E of diesel.
Avatar gebruiker
EmielW201
Diamant Boarder
Diamant Boarder

Berichten: 1232
Geregistreerd: 17 okt 2010, 15:23
Woonplaats: Sint-Oedenrode
Type wagen: 190E 2.0
Bouwjaar: 1986
Automaat: Nee
LPG: Nee


Re: Vooraan iets lager

Berichtdoor 8loch » 27 maart 2017, 18:55

Als ik hem vooraan 1 à 2cm lager wil (dan nu het geval is), zoek ik misschien best naar gebruikte veren van een 1.8 ten opzichte van nieuwe veren ?
En moeten het dan specifiek veren zijn van een 1.8 , van een 2.0 bv. is niet goed ?
8loch
Junior Boarder
Junior Boarder

Berichten: 35
Geregistreerd: 22 jan 2017, 07:52
Type wagen: 190E 1.8
Bouwjaar: 1990
Automaat: Ja
LPG: Nee


Re: Vooraan iets lager

Berichtdoor EmielW201 » 28 maart 2017, 19:04

Voor gebruikte veren moet je de kleurcodes controleren en de dikte van de windingen met een schuifmaat opmeten.

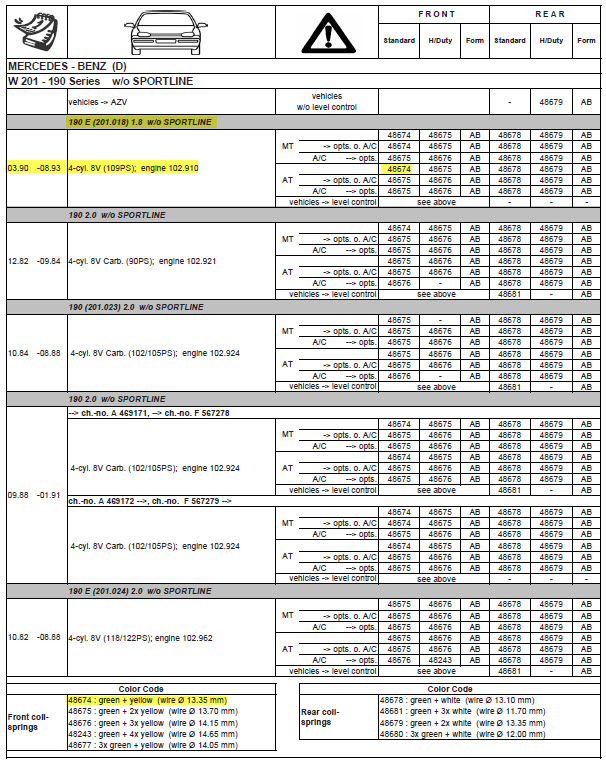

In onderstaande tabel staan de originele kleurcodes en winding diktes aangegeven voor jouw model W201:
Bijlagen
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
Avatar gebruiker
EmielW201
Diamant Boarder
Diamant Boarder

Berichten: 1232
Geregistreerd: 17 okt 2010, 15:23
Woonplaats: Sint-Oedenrode
Type wagen: 190E 2.0
Bouwjaar: 1986
Automaat: Nee
LPG: Nee


Re: Vooraan iets lager

Berichtdoor 8loch » 28 maart 2017, 19:56

:handgestures-thumbup:

Hartelijk dank voor deze info, Emiel.
8loch
Junior Boarder
Junior Boarder

Berichten: 35
Geregistreerd: 22 jan 2017, 07:52
Type wagen: 190E 1.8
Bouwjaar: 1990
Automaat: Ja
LPG: Nee
