Lampjes verlichting dashboard

Alle techniek (mechanisch, elektronisch) zaken horen hier thuis.
Forumregels
Plaats een reactie

Lampjes verlichting dashboard

Berichtdoor Etab » 21 maart 2017, 22:51

Naar aanleiding van een vraag over mijn kachel heb ik het middenconsole eraf gehaald en de boel juist in elkaar gezet.
Gevolg: kachel doet het prima :handgestures-thumbup: maar verlichting van de schuiven en knoppen zijn uit. :dry:

De boel weer open gemaakt en het is er nogal een weerwar van draden :shock: . en die lampjes zijn heeeel klein.
Nu vroeg ik me af of die in serie staan? Net als met kerstverlichting. 1e stuk de rest ook uit? Omdat ik de draden van de 1 naar de ander zie lopen. Erom heen doet alles het nog gewoon.

En kan iemand mij vertellen waar die kleine lampjes te vinden zijn? en eventueel te controleren of ze goed zijn? Het zijn net speldekoppen.
Als een grote meerderheid ja zegt. Betekent dat nog niet dat ze ook gelijk hebben.
Beverwijk
Etab
Expert Boarder
Expert Boarder

Berichten: 115
Geregistreerd: 01 apr 2015, 13:02
Type wagen: 190
Bouwjaar: Ouder
Automaat: Ja
LPG: Nee
Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Dirk Pauwels » 21 maart 2017, 23:12

Dat zijn geen lampjes, maar een glasvezel die het licht van 1 lampje verdeeld naar de verschillende knoppen. Als je zoekt waar de glasvezels vaandaan komen zou je 1 lampje moeten vinden.
Avatar gebruiker
Dirk Pauwels
Junior Boarder
Junior Boarder

Berichten: 21
Geregistreerd: 16 feb 2017, 08:42
Woonplaats: Sint Niklaas België
Roepnaam:
Type wagen: 190D 2.0
Bouwjaar: 1985
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:
Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Bram Jansen » 21 maart 2017, 23:19

Lampjes zijn inderdaad klein.

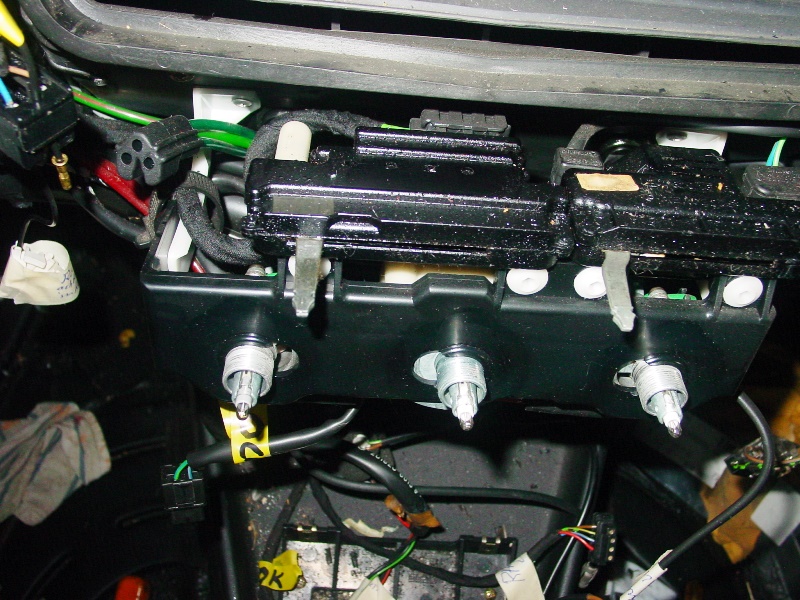

Hier heb je een plaatje van de lampjes in de 3 draaiknoppen.

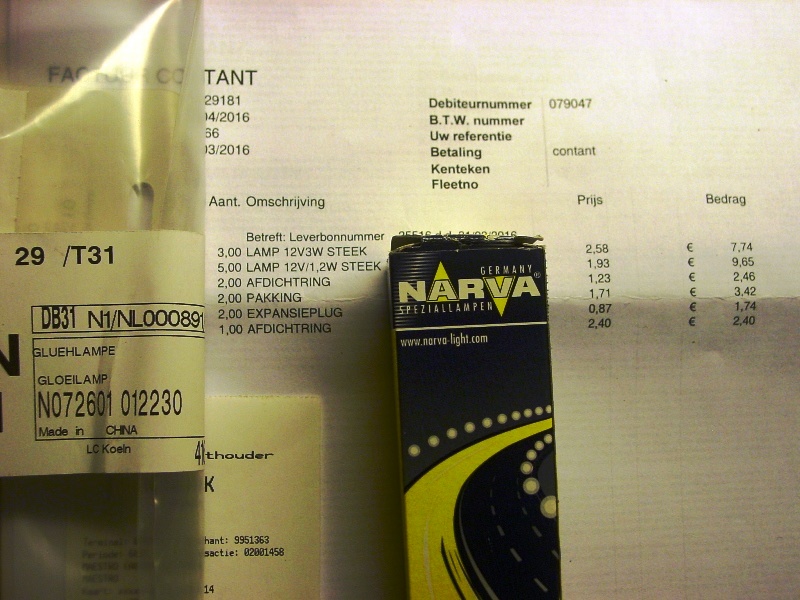

1 kapot, 1 uit, 2 kapot, 2 uit

De kleintjes=1,2 watt
Bijlagen
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
190 Dashboard verwijderd kachel paneel2 mrt 2016.jpg
190 Dashboard verwijderd kachel paneel2 mrt 2016.jpg (238.19 KiB) 1990 keer bekeken
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 136: preg_match_all(): The /e modifier is no longer supported, use preg_replace_callback instead
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 138: array_unique() expects parameter 1 to be array, null given
[phpBB Debug] PHP Warning: in file [ROOT]/includes/functions_reimg.php on line 141: Invalid argument supplied for foreach()
Bram Jansen

Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Etab » 21 maart 2017, 23:36

Kijk prijs valt mee.

Maar geen serie dus. Dan zal er iets anders in de lijn niet goed zitten.
De boel maar voor de X keer losmaken en op zoek gaan☺
Als een grote meerderheid ja zegt. Betekent dat nog niet dat ze ook gelijk hebben.
Beverwijk
Etab
Expert Boarder
Expert Boarder

Berichten: 115
Geregistreerd: 01 apr 2015, 13:02
Type wagen: 190
Bouwjaar: Ouder
Automaat: Ja
LPG: Nee
Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Bram Jansen » 21 maart 2017, 23:43

Zo uit mijn hoofd weet ik niet of er bij de W201 op de achterkant van de klok ook een zekering zit die een aantal lampjes van voeding voorziet. Als je het klokkenhuis naar voren trekt en hij zit er, dan is hij rood. Het is net als de lamphoudertjes, maar dan niet bruin maar rood. Kost ook 3x niks
Bram Jansen

Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Feyenoord4ever » 22 maart 2017, 07:49

Ik heb de lampjes achter de draaiknoppen ook eens vervangen door T5 1,2 W Wegdebase lampjes, met als gevolg dat de draaiknoppen ontzettend heet werden; daarna ben ik overgegaan op T5 0,4 Watt Wedgebase en is het probleem van hitte voorbij.
Tussendoor heb ik ook nog eens LED-lampjes geprobeerd, maar die vond ik te wit.

Ik heb ze besteld bij de Lampengrossier.nl

Productnr. Naam

50123504-0004 T5 0,4W WB 12V 1235104 WEDGEBASE LAMP - aantal: 10 stuks

Prijs € 4,70

Succes
Henri
Avatar gebruiker
Feyenoord4ever
Platinum Boarder
Platinum Boarder

Berichten: 504
Geregistreerd: 08 jun 2011, 21:45
Woonplaats: Zeeland
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1985
Automaat: Ja
LPG: Nee
Andere wagens / opmerkingen:
Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Bram Jansen » 22 maart 2017, 09:00

Helemaal eens dat 0.4 watt beter is, maar de dealer had die niet en 1.2 W is goed volgens die dealer medewerker:)

Heb ook al eens een puf rook uit m'n dashboard gehad, (stukje plastic verbrand) dus hoe lager het wattage des te beter het is.
Sindsdien heb ik altijd een brandblusser binnen bereik :auto-layrubber:
Bram Jansen

Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Dompie » 22 maart 2017, 10:46

Heb de juiste 0,4 Watt lampjes onlangs besteld bij de MB dealer. Onderdeelnr is : N 000000001061 64 ;Ze kosten een 2 € per stuk. En dan worden de verwarmingsknoppen inderdaad niet meer warm.
Groeten, Dirk
Dompie
Junior Boarder
Junior Boarder

Berichten: 32
Geregistreerd: 22 aug 2014, 16:40
Woonplaats: Grobbendonk (B)
Roepnaam:
Type wagen: 190D 2.0
Bouwjaar: 1991
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:
Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Kippas » 22 maart 2017, 11:14

Dan kun je ze beter bij lampengrossier bestellen. Dat heb ik deze week gedaan en ik was voor 4,70 klaar. Dan heb je sowieso ook het juiste wattage.
Mvg Stefan
Kippas
Expert Boarder
Expert Boarder

Berichten: 100
Geregistreerd: 26 maart 2016, 10:32
Type wagen: 190E 2.0
Bouwjaar: 1986
Automaat: Ja
LPG: Nee
Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Kippas » 22 maart 2017, 11:15

Je krijgt dan 10 lampjes voor die prijs :roll:
Mvg Stefan
Kippas
Expert Boarder
Expert Boarder

Berichten: 100
Geregistreerd: 26 maart 2016, 10:32
Type wagen: 190E 2.0
Bouwjaar: 1986
Automaat: Ja
LPG: Nee
Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Bassje » 22 maart 2017, 11:27

Avatar gebruiker
Bassje
Erelid
Erelid

Berichten: 10617
Geregistreerd: 13 aug 2008, 22:59
Roepnaam:
Type wagen: 190E 2.0
Bouwjaar: 1990
Automaat: Ja
LPG: Nee
Omhoog

Re: Lampjes verlichting dashboard

Berichtdoor Bastian-Hoen » 22 maart 2017, 12:53

Volgens wis mag je geen 1.2watt meer gebruiken
Er is heel lang geleden een terug roep actie geweest
Van Mercedes zelf geld voor W201 en de W124
Mb levert nu een soort van led lampje
Nummer weet ik zo niet

Maar de 1.2 watt NIET gebruiken deze worden te heet
http://www.fulica.nl (sorry nog steeds weinig foto's
let op wij zijn geen bedrijf ( de classics) maar wij zijn bezig met een hobby
in een mooie grote sleutel hal in Doetinchem

beschikken over EPC van Wensink
Bastian-Hoen
Platinum Boarder
Platinum Boarder

Berichten: 935
Geregistreerd: 09 mei 2012, 15:03
Woonplaats: Doetinchem
Roepnaam:
Type wagen: 190E 1.8
Bouwjaar: 1991
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:
Omhoog
Plaats een reactie

Keer terug naar Techniek W201

Wie is er online

Gebruikers op dit forum: Geen geregistreerde gebruikers. en 1 gast

Gesponsord door: KlasseKlassiek.nl
Kijk voor onderdelen op: Oldtimerbay.com
Wclubs.nl clubs: | W123  |  W124   |  W126   |  W201   |  W202   |  W210   |  OldtimerForum  |  MB Klassieker  |  Bus en Camper

Powered by phpBB ® Forum Software © phpBB Group. phpBB.nl Vertaling
phpBB SEO
