Hoogteverschil Sportline / standaard onderstel

Alle techniek (mechanisch, elektronisch) zaken horen hier thuis.

Hoogteverschil Sportline / standaard onderstel

Berichtdoor Ruub-ster » 01 maart 2015, 20:54

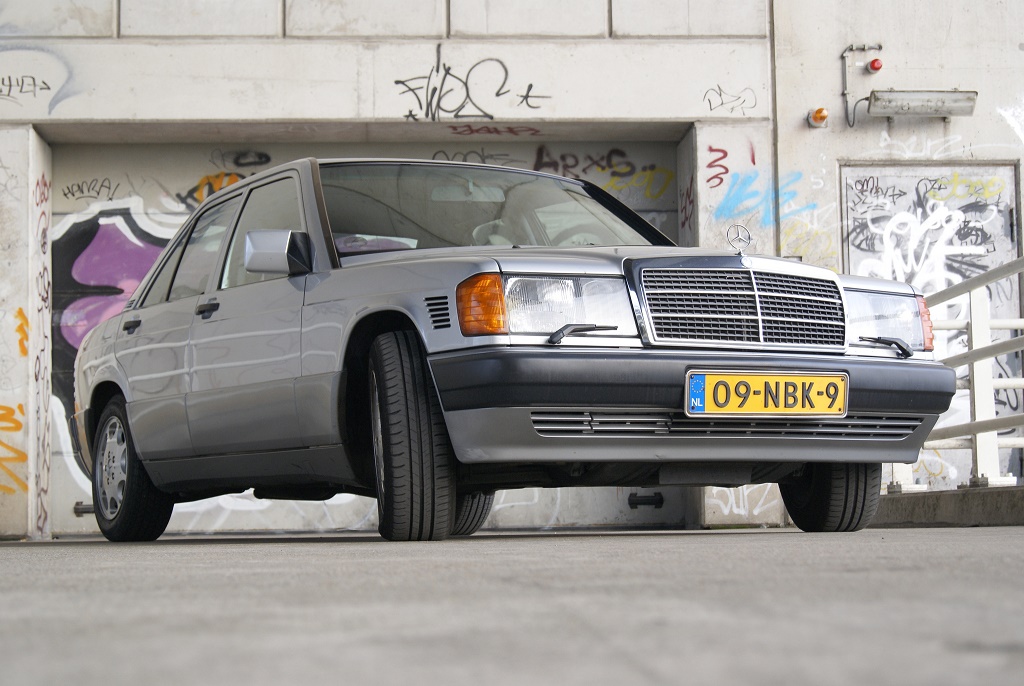

Mijn Turbodiesel staat net ff wat te hoog vind ik.

Nou vroeg ik me af wat er allemaal verschilt en hoeveel MM het scheelt als je een normaal onderstel en een sportline onderstel hebt?

Ik weet dat ik eerst de rubbers kan vervangen boven de veren maar denk hier niet genoeg mee te winnen eerlijk gezegd. is er iemand die het hoogteverschil weet? Ik neem aan dat de volgende delen anders zijn t.o.v het normale onderstel:

-Schokbrekers
-Veren
-Stabilisatorstangen
-draagarmen
Bijlagen
Avatar gebruiker
Ruub-ster
Erelid
Erelid

Berichten: 7805
Geregistreerd: 23 maart 2009, 13:42
Woonplaats: Sliedrecht
Roepnaam:
Type wagen: 190D 2.0
Bouwjaar: 1992
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Hoogteverschil Sportline / standaard onderstel

Berichtdoor CarloGeenen » 02 maart 2015, 07:49

22mm


Volgens mij zijn de meeste verlagingsveren 30 - 40mm, maar origineel Sportline lijkt mij beter. De dingen die je opsomt kloppen denk ik.

Edit:
Sportline suspension option:
Front Springs
Front Struts
Front Sway Bar
Inner Bushings
Outer Bushings
Lower Control Arm Bushing Kits
Rear Springs
Rear Shock Absorbers
Rear Sway Bar
Rear Bushings
Rear Sub-Frame Mounts
Sportline Steering box
Wishbones

Interior & Wheels:

Sportline 8 hole alloys
Sportline Steering Wheel (390mm)
Sportline Gear Knob (manual or auto)
Sportline Buckets seats (front) light or dark grey)
Sportline Rear seats (bucket or bench) (light or dark grey
Sportline Badge lower front wings
Met vriendelijke groet, de Heck-rollo brigade

Verbruik 190E 1.8
Avatar gebruiker
CarloGeenen
Diamant Boarder
Diamant Boarder

Berichten: 2202
Geregistreerd: 07 jan 2011, 16:14
Woonplaats: Limburg
Roepnaam:
Type wagen: 190E 1.8
Bouwjaar: 1992
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Hoogteverschil Sportline / standaard onderstel

Berichtdoor Ruub-ster » 02 maart 2015, 10:46

Dat is nogal wat dan.. Volledig sportline maken kost dus een vermogen en ook niet echt nuttig aangezien alles nu functioneert zoals dat hoort.

22MM hoogteverschil is wel netjes. Zo eens meten en proberen te kijken in de veren wat voor doppen er bovenop zitten.
Avatar gebruiker
Ruub-ster
Erelid
Erelid

Berichten: 7805
Geregistreerd: 23 maart 2009, 13:42
Woonplaats: Sliedrecht
Roepnaam:
Type wagen: 190D 2.0
Bouwjaar: 1992
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:


Re: Hoogteverschil Sportline / standaard onderstel

Berichtdoor CarloGeenen » 03 maart 2015, 08:35

Precies, Sportline maken is niet te doen, subtiel verlagen wel.
Met vriendelijke groet, de Heck-rollo brigade

Verbruik 190E 1.8
Avatar gebruiker
CarloGeenen
Diamant Boarder
Diamant Boarder

Berichten: 2202
Geregistreerd: 07 jan 2011, 16:14
Woonplaats: Limburg
Roepnaam:
Type wagen: 190E 1.8
Bouwjaar: 1992
Automaat: Nee
LPG: Nee
Andere wagens / opmerkingen:
